Add a Certificate

Purpose

Add a certificate to the Cantara Administration Console.

Before you begin

  • You must have permissions to manage certificates.

  • A tenant must already exist.

  • You should have a PKCS12 certificate file ready.

  • You must know the file password used to encrypt the PKCS12 file.

  • If the file contains multiple certificates, you should know the alias (optional).

Procedure

To add a certificate:

  1. Navigate to Certificates.

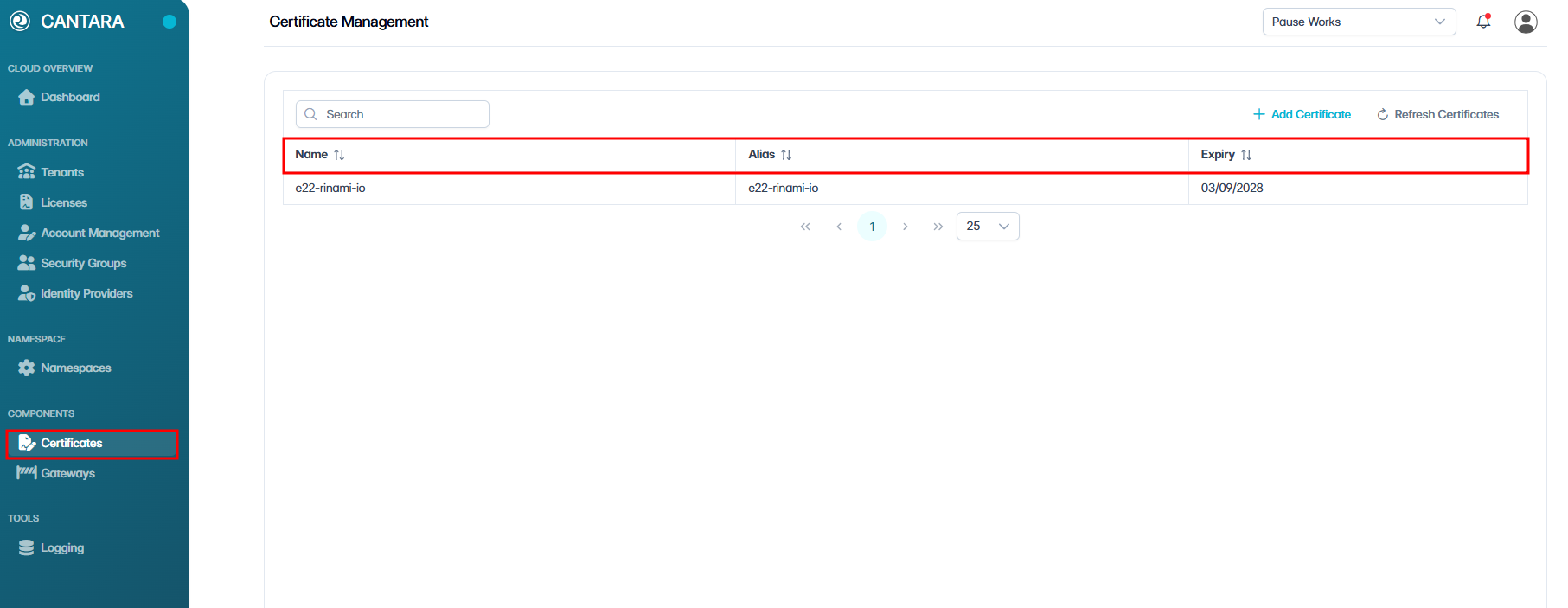

    The Certificates Management screen opens, showing a list of all existing certificates along with their details, such as Name, Alias and Expiry.

    Certificates 2.png

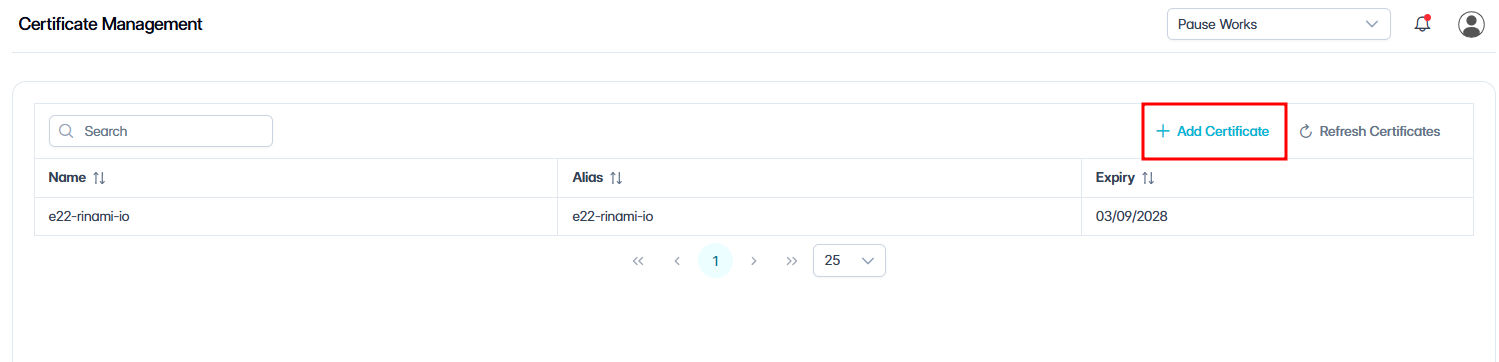

  2. Click + Add Certificate in the top right of the Certificates list.

    Add cert 1.png

  3. Enter a Name for the certificate.

    • The name must be unique.

    • The name must follow naming rules:

      • Allowed: Letters, numbers, underscores _, dashes -

      • Not allowed: Spaces or other special characters

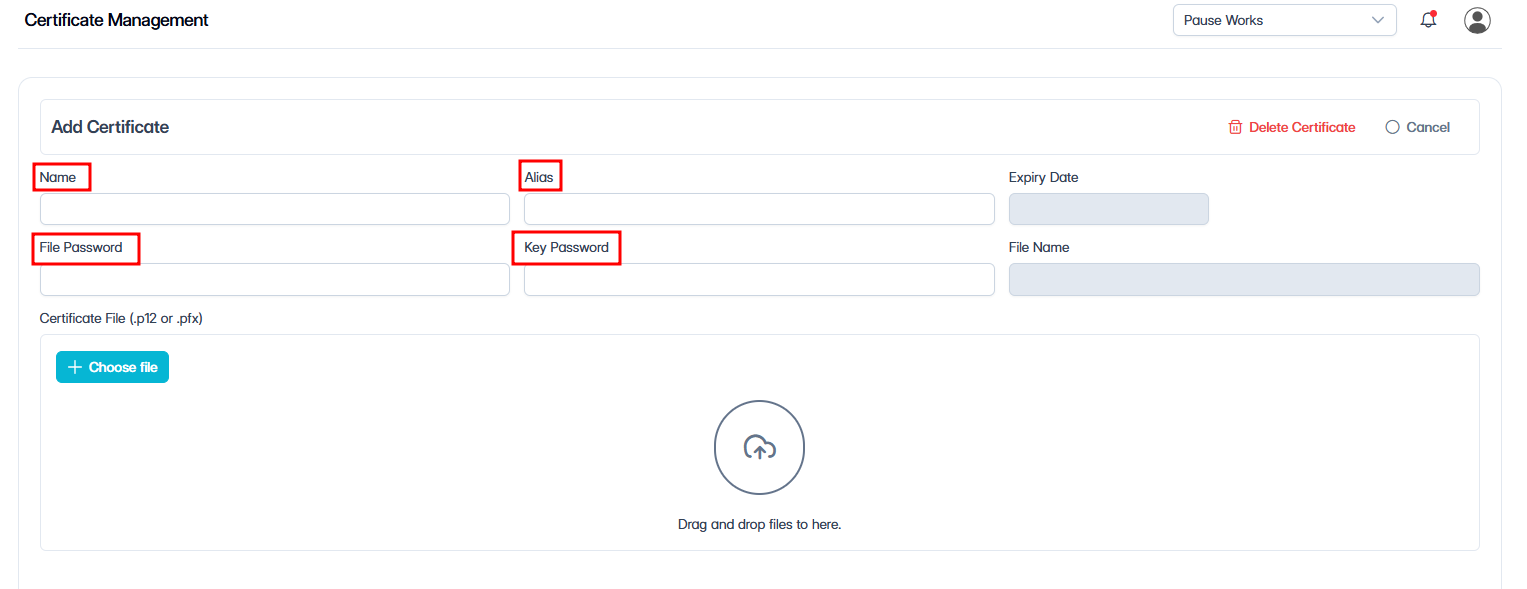

    addert 2.png

  4. (Optional) Enter an Alias.

    • Required only if the PKCS12 file contains multiple certificates.

    • If left blank, the system uses the first certificate in the file.

  5. Enter the File Password.

    • This is mandatory to read the PKCS12 file.

  6. (Optional) If the PKCS12 file has a key password, enter it.

Note: Use a PKCS12 keystore (JKS is not supported). If your private key and certificate are separate, merge them into a single file first. Then create the keystore with the following command:

openssl pkcs12 -export -in mykeycertificate.pem.txt -out mykeystore.pkcs12 \ -name myAlias -noiter -nomaciter

A File Password is required. The Key Password is only needed if the key is encrypted.

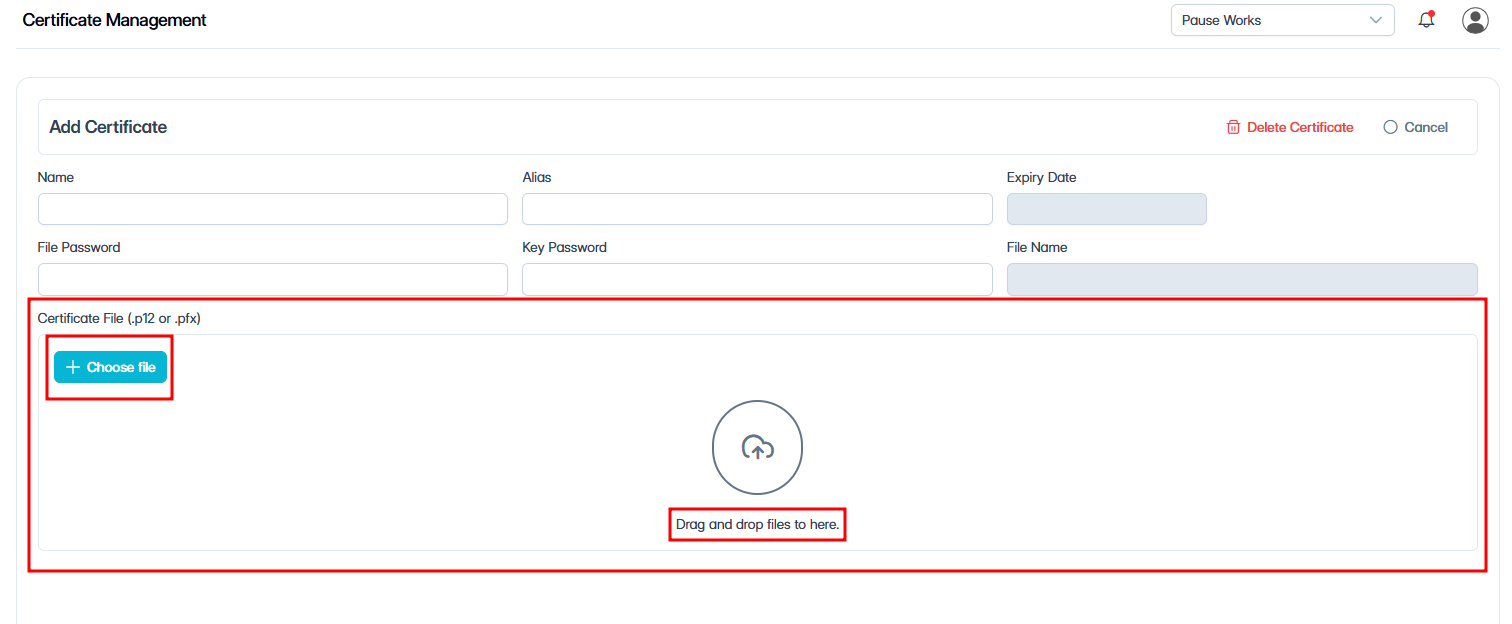

  1. Select the certificate file.

    • Drag and drop the PKCS12 file or browse to select it.

    • Supported file format: PKCS12 (.p12 or .pfx).

    • Note: JKS format is not supported.


  2. Click Save.

  • The system validates the PKCS12 file and loads the certificate.

  • The expiry date is displayed if successfully read.

  • If the file cannot be read, an error or warning is shown.
